VSDebugPro

VSDebugPro is a Visual Studio extension for Visual C/C++, C# that adds several usefull debugging utilities such as dumping raw blocks of memory to a file without changing program code, loading binary data from a file to a specific memory location, allocating new memory in the debugged process, and more.

Available for:

VS2010 - VS2022, C/C++, C#, x86/64, Arm64/Arm64EC

Features:

• Save memory blocks from Minidumps
• Supports remote debugging sessions
• Works with Visual Studio for ARM
• Works with ARM programs while debugging
• Works with x64 programs running emulated on ARM64EC
• Works with x86/x64 targets
• Compatible with any programming language in Visual Studio that implements the standard debugger interface

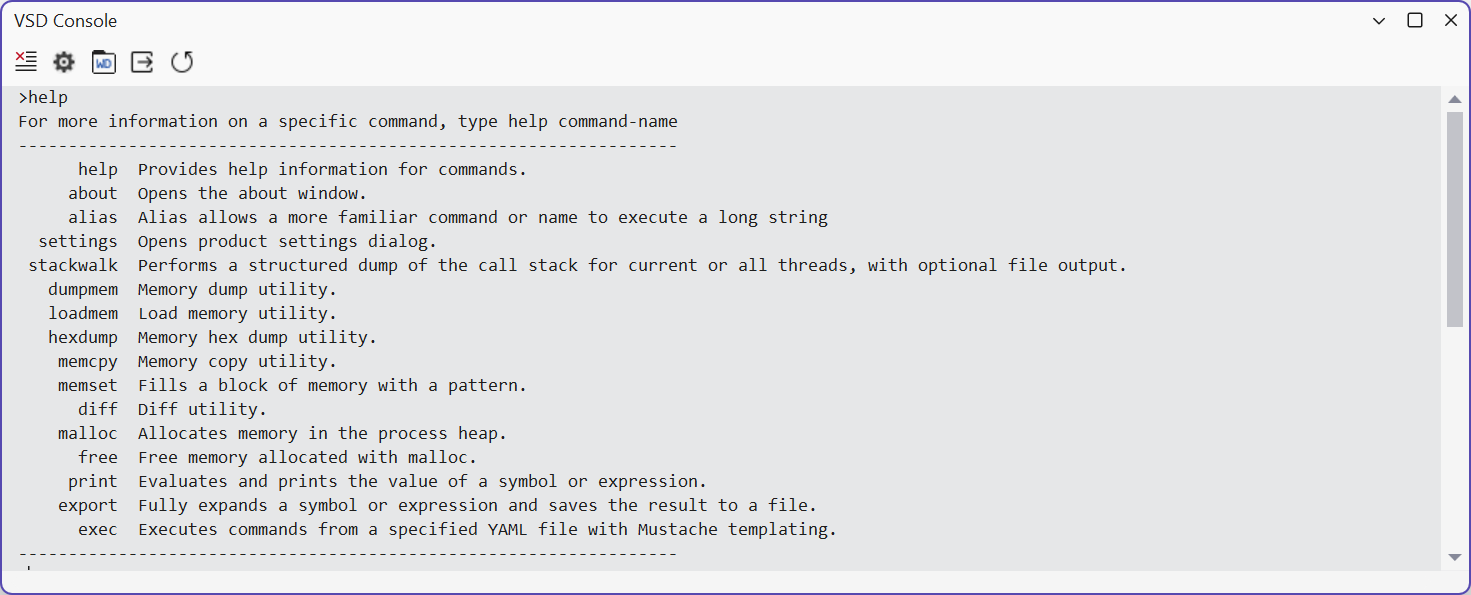

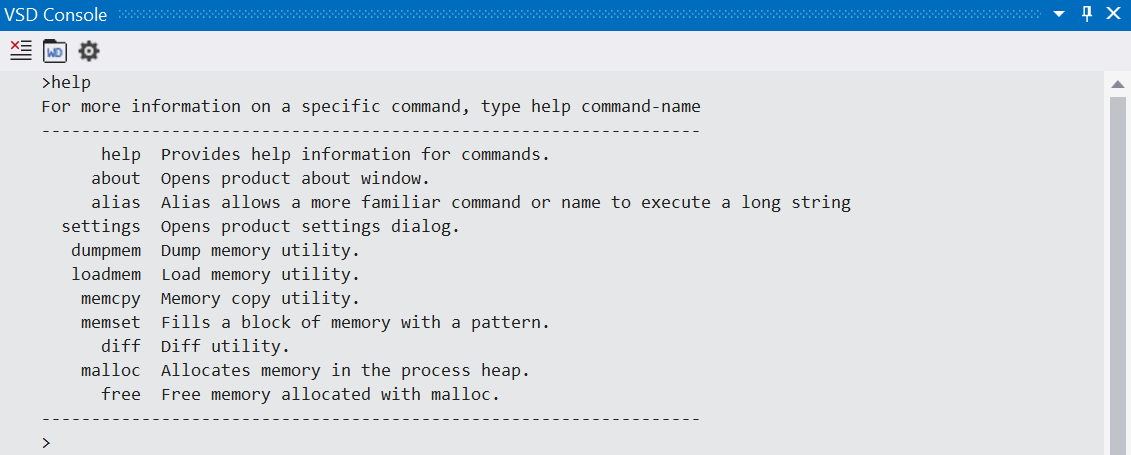

• Console commands:

        help  Provides help information for commands.
       about  Opens the about window.
       alias  Alias allows a more familiar command or name to execute a long string
    settings  Opens product settings dialog.
     dumpmem  Memory dump utility.
     loadmem  Load memory utility.
      memcpy  Memory copy utility.
      memset  Fills a block of memory with a pattern.
        diff  Memory diff.
      malloc  Allocates memory in the process heap.
        free  Free memory allocated with malloc.
        exec  Executes commands from a specified YAML file with Mustache templating.


• Batch commands

   exec <yamlFilePath> [arg1] [arg2] ... [argN]


   variables:
   var1: value1
   var2: value2

   commands:
   - command1
   - command2


• Memory dump

    dumpmem [options] <filename> <address> <size>


• Memory write

    loadmem <file> <address> <size>


• Memory copy

    memcpy <dst> <src> <size>


• Write memory with a pattern

    memset <dst> <val> <size>


• Memory diff

    <diff> <addr1> <addr2> <size>
